Assets dashboards for Jira Service Management Cloud is a Premium and Enterprise-only feature that is currently in an early access program. If you find a bug or have questions, please reach out to Atlassian Support or the Atlassian Community.
Here are some example dashboards and charts used by companies adopting IT Assets and Configuration Management practices.
Hardware Assets Management dashboard
This dashboard can be used to gain insights into your company’s hardware by object types or attributes.
Chart
Filters
Visualization

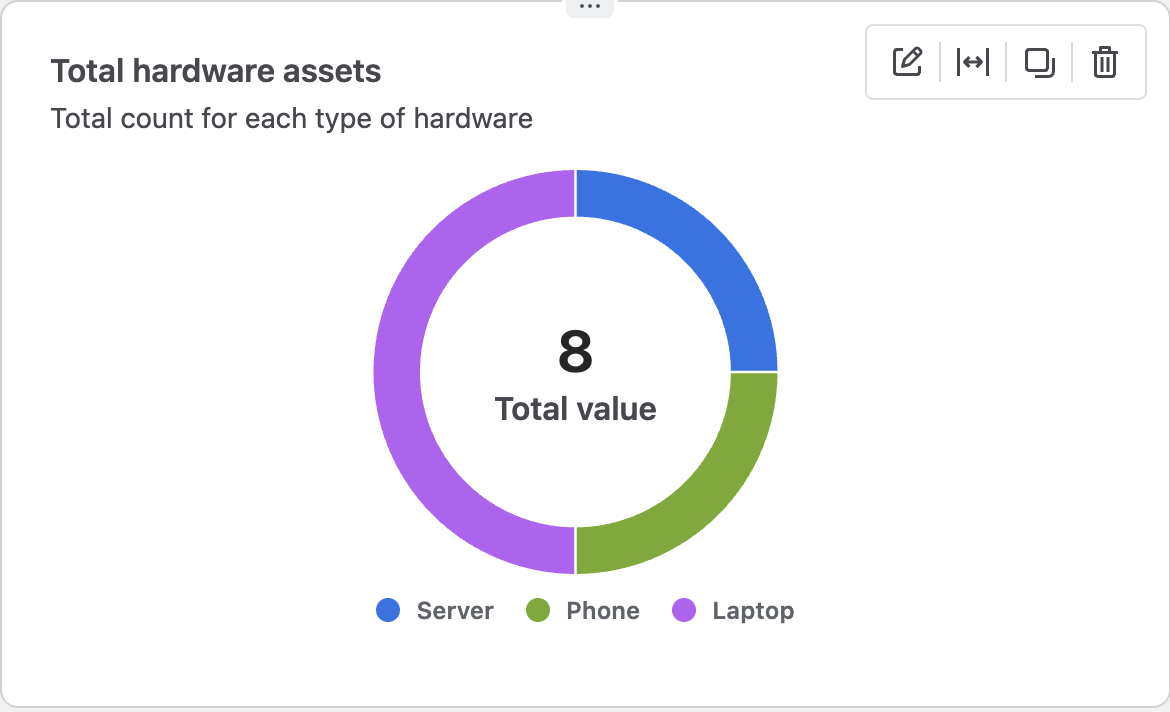

Total hardware assets: shows the total count of hardware objects for each hardware type
Chart type: donut chart
Metric: count of objects
Schema: IT Assets Management
Object type: Laptop, Phones, Server
What to show: Laptop, Phone, Server
Slices: object type

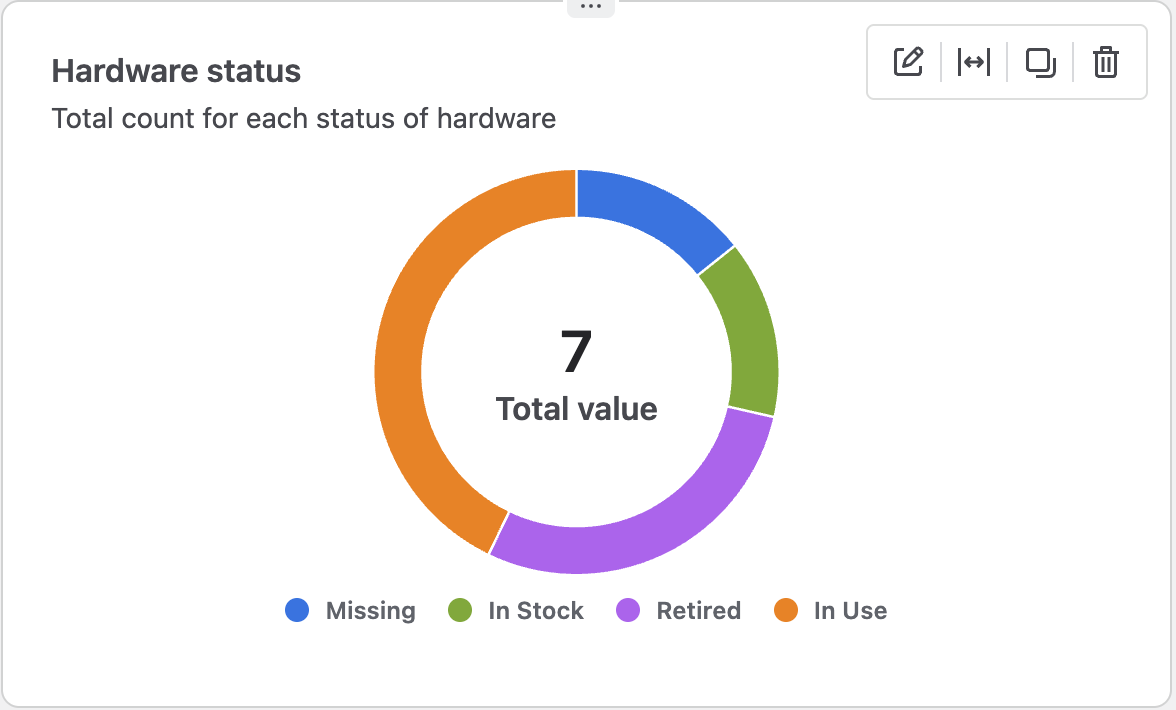

Hardware status: shows the total count of hardware objects for each hardware status
Chart type: donut chart
Metric: count of objects
Schema: IT Assets Management
Object type: Laptop, Phone, Server
What to show: Laptop, Phone, Server
Slices: Attribute
Attribute: Asset status

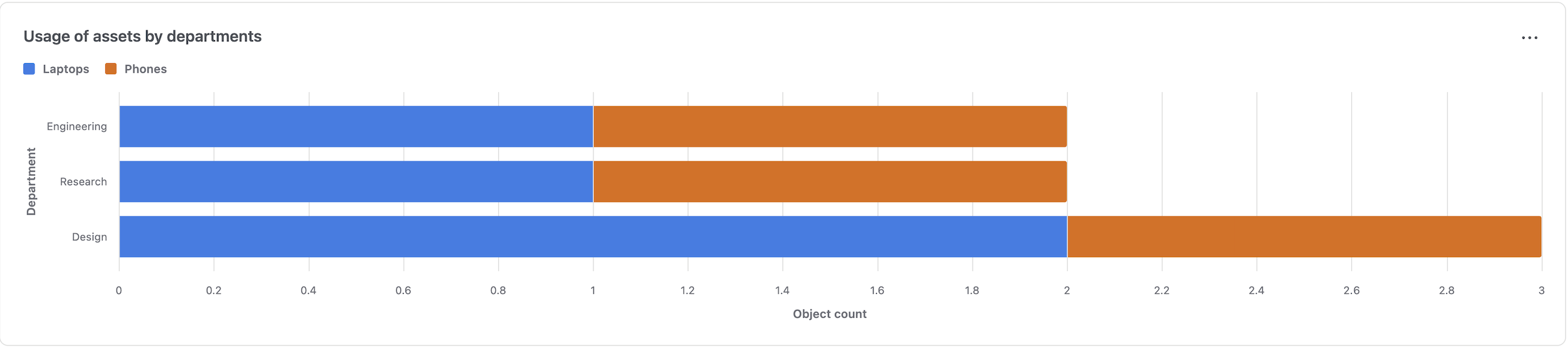

Usage of assets by department: shows the total count of laptops and phones used by each department
Chart type: horizontal bar chart
Metric: count of objects
Schema: IT Assets Management
Object type: Laptop, Phone
What to show: Laptop, Phone
Vertical (y) axis: Attribute
Attribute: Department

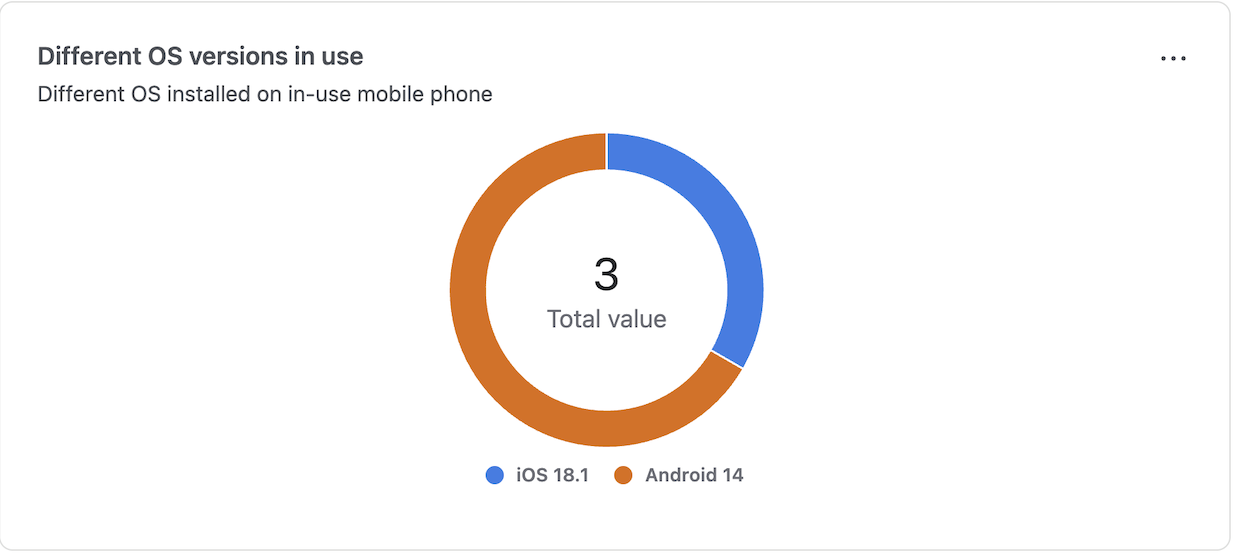

Different OS versions in use: shows the total count of mobile phones by OS versions in use
Chart type: donut chart
Metric: count of objects
Schema: IT Assets Management
Object type: Phone
What to show: Phone
Slices: Attribute
Attribute: Operating system

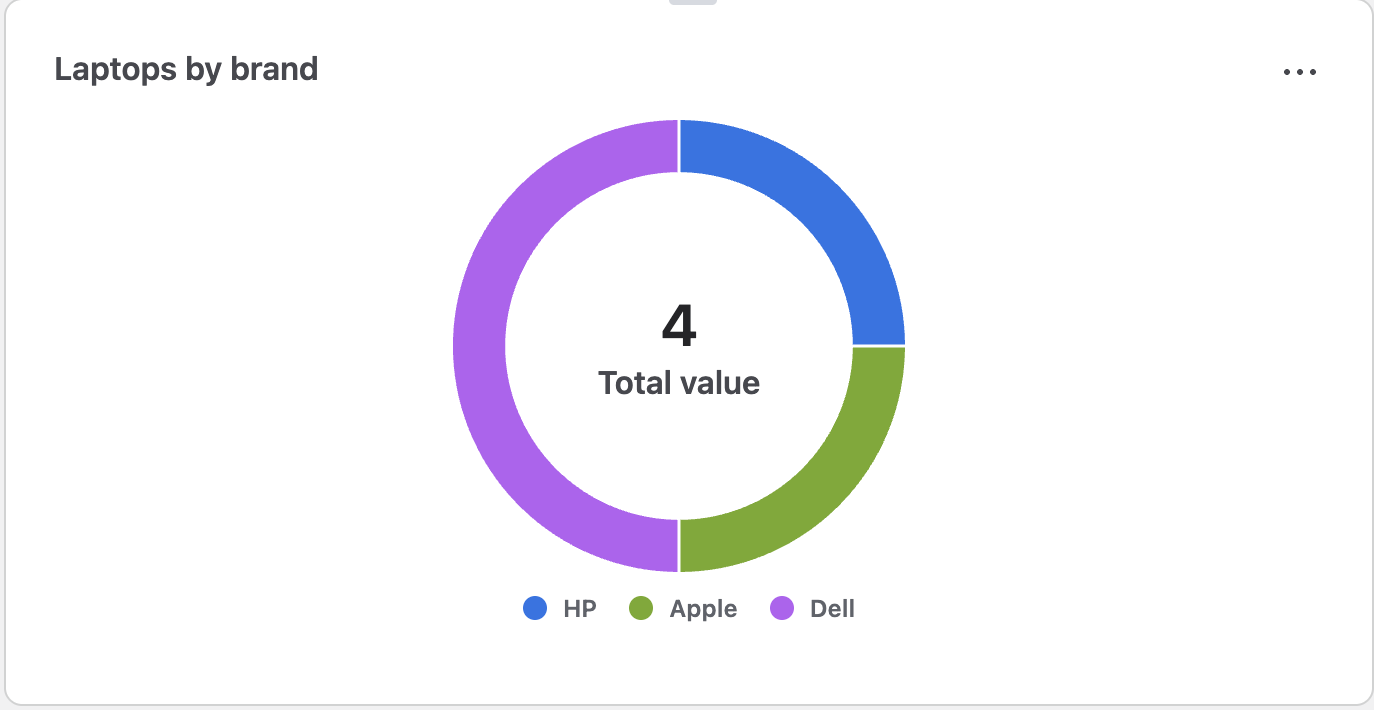

Laptop by type: shows the number of laptops by brand
Chart type: donut chart
Metric: count of objects
Schema: IT Assets Management
Object type: Laptop
What to show: Laptop
Slices: Attribute
Attribute: Brand
IT Cost Management
This dashboard provides valuable insights into your company’s IT expenditure data, categorised by object types or attributes.
Chart
Filters
Visualization

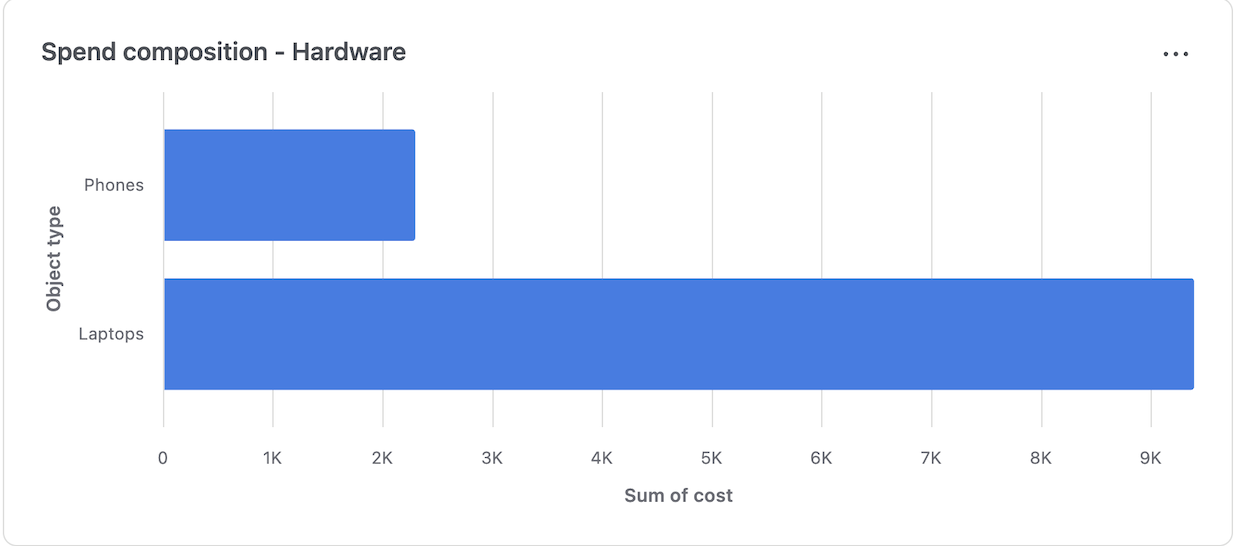

Spend composition - Hardware: shows the aggregated cost spent on phones and laptops
Chart type: horizontal bar chart
Metric: aggregation of attributes
Schema: IT Assets Management
Object type: hardware assets
What to show: hardware assets
Vertical y axis: object type
Aggregation: SUM of
Aggregation attribute: purchase cost
Spend composition - Software: shows you the aggregated cost spent on software assets by vendor
Chart type: horizontal bar chart
Metric: aggregation of attributes
Schema: IT Assets Management
Object type: software assets
What to show: software assets
Vertical y axis: Attribute
Attribute: Vendor
Aggregation: SUM of
Aggregation attribute: purchase cost

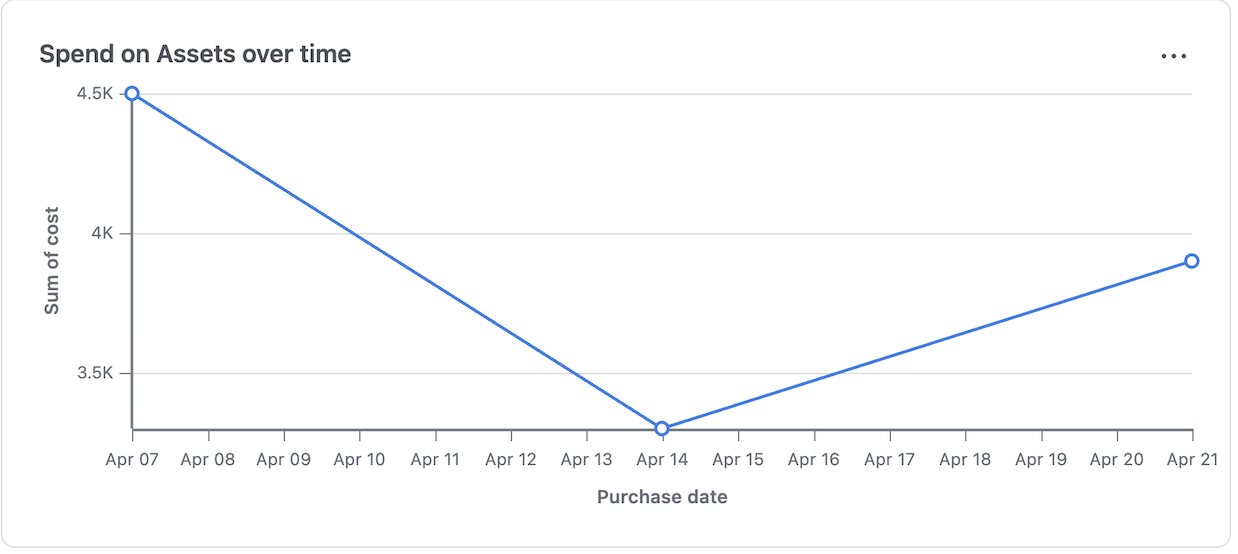

Spend on Assets over time: shows the aggregated cost spent on hardware and software assets by purchase date
Chart type: line chart
Metric: aggregation of attributes
Schema: IT Assets Management
Object type: hardware assets, software assets
What to show: hardware assets, software assets
Horizontal (x) axis: Attribute
Attribute: purchase date
Period: Days
Aggregation: SUM of
Aggregation attribute: Cost

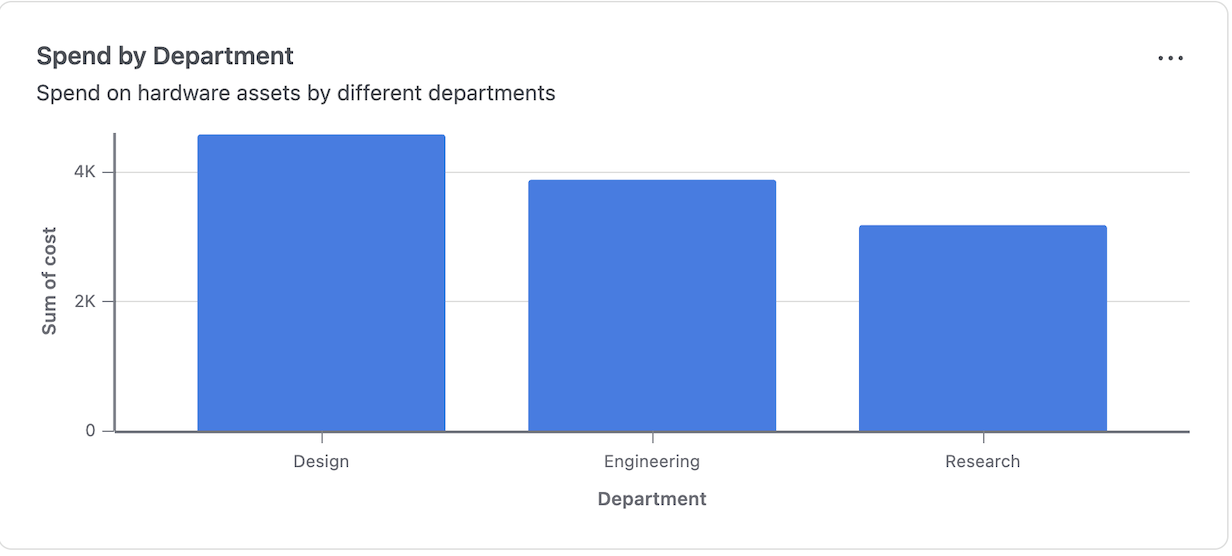

Spend by department: shows the aggregated cost of hardware spent by department
Chart type: vertical bar chart
Metric: aggregation of attributes
Schema: IT Assets Management
Object type: hardware assets
What to show: hardware assets
Horizontal (x) axis: Attribute
Attribute: department
Aggregation: SUM of
Aggregation attribute: Cost

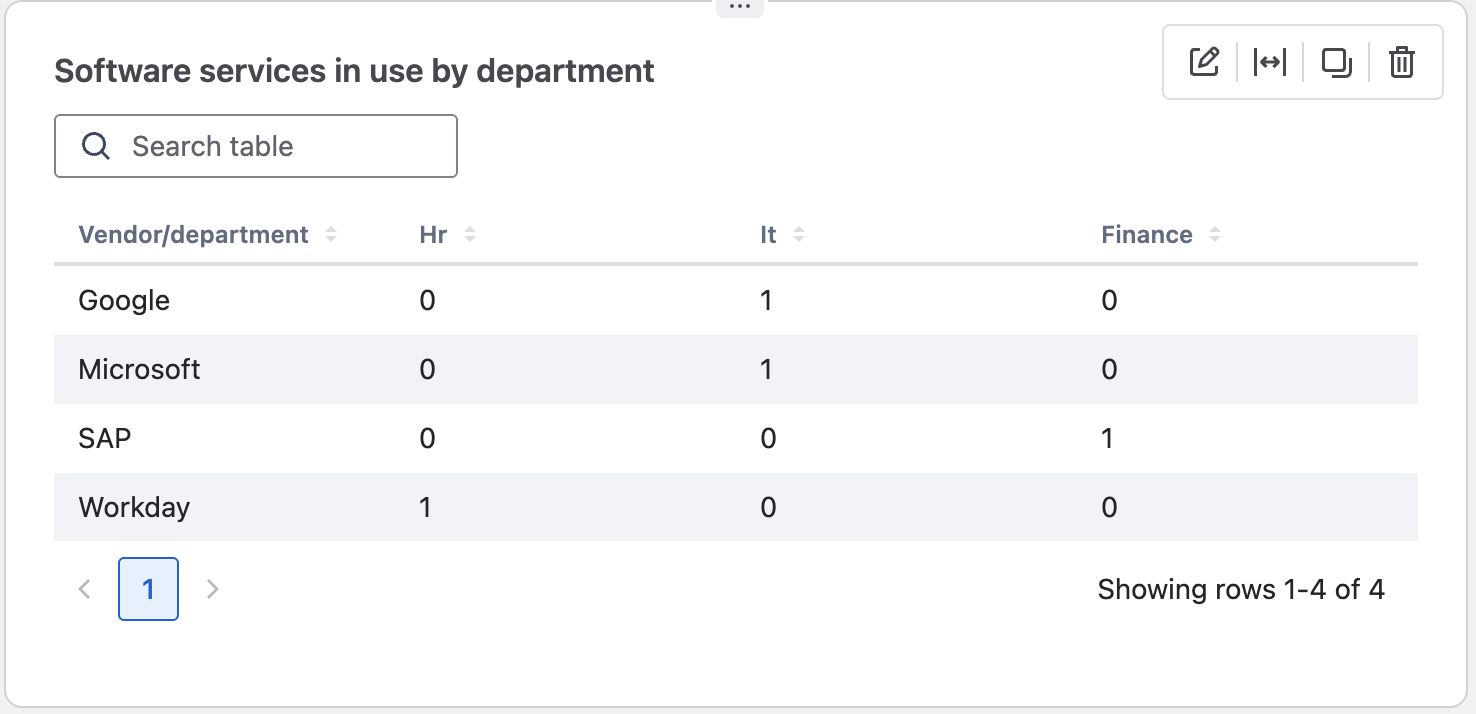

Software services in use by department
Chart type: data table
Metric: two-dimensional attribute analysis
Schema: IT Assets Management
Object type: software assets
Rows: vendor
Columns: department
Attribute values for columns: HR, IT, Finance
Rows per page: 10
Talent Management dashboard
This dashboard can be used to gain insights into your company’s employee data by object types or attributes.
Chart
Filters
Visualization

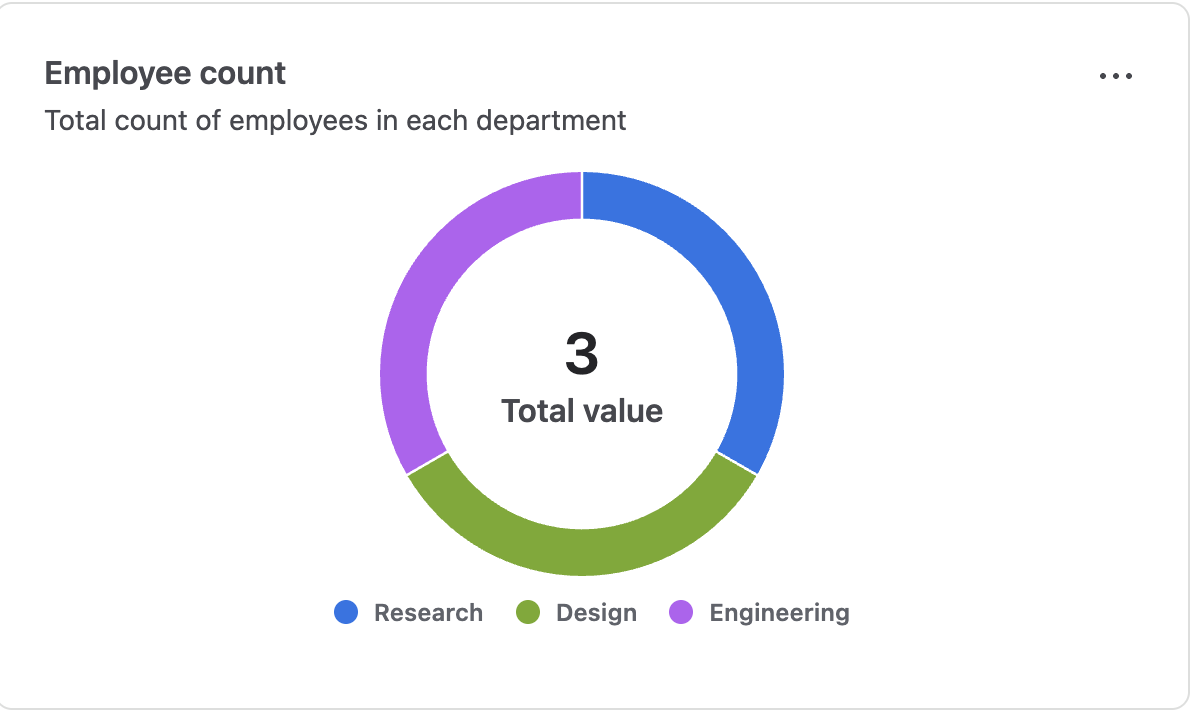

Employee count: shows the total number of employees in each department
Chart type: donut chart
Metric: count of objects
Schema: employee management
Object type: employees
What to show: employees
Slices: department

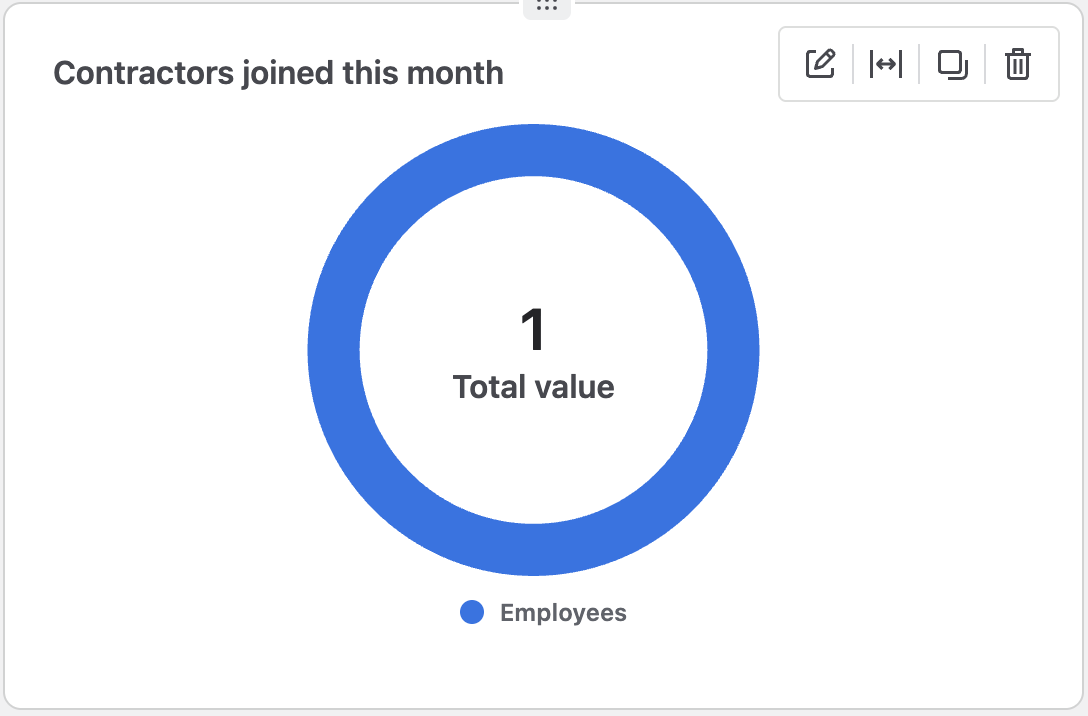

Contractors joined this month: shows the total number of contractors who joined the company in the current month.
Chart type: donut chart
Metric: count of objects
Schema: employee management
Object type: employees
What to show: employees
Slices: object type
Filter 1: Attribute: Start date after 1 May 2025
Filter 2: Attribute: Employee type is Contractor

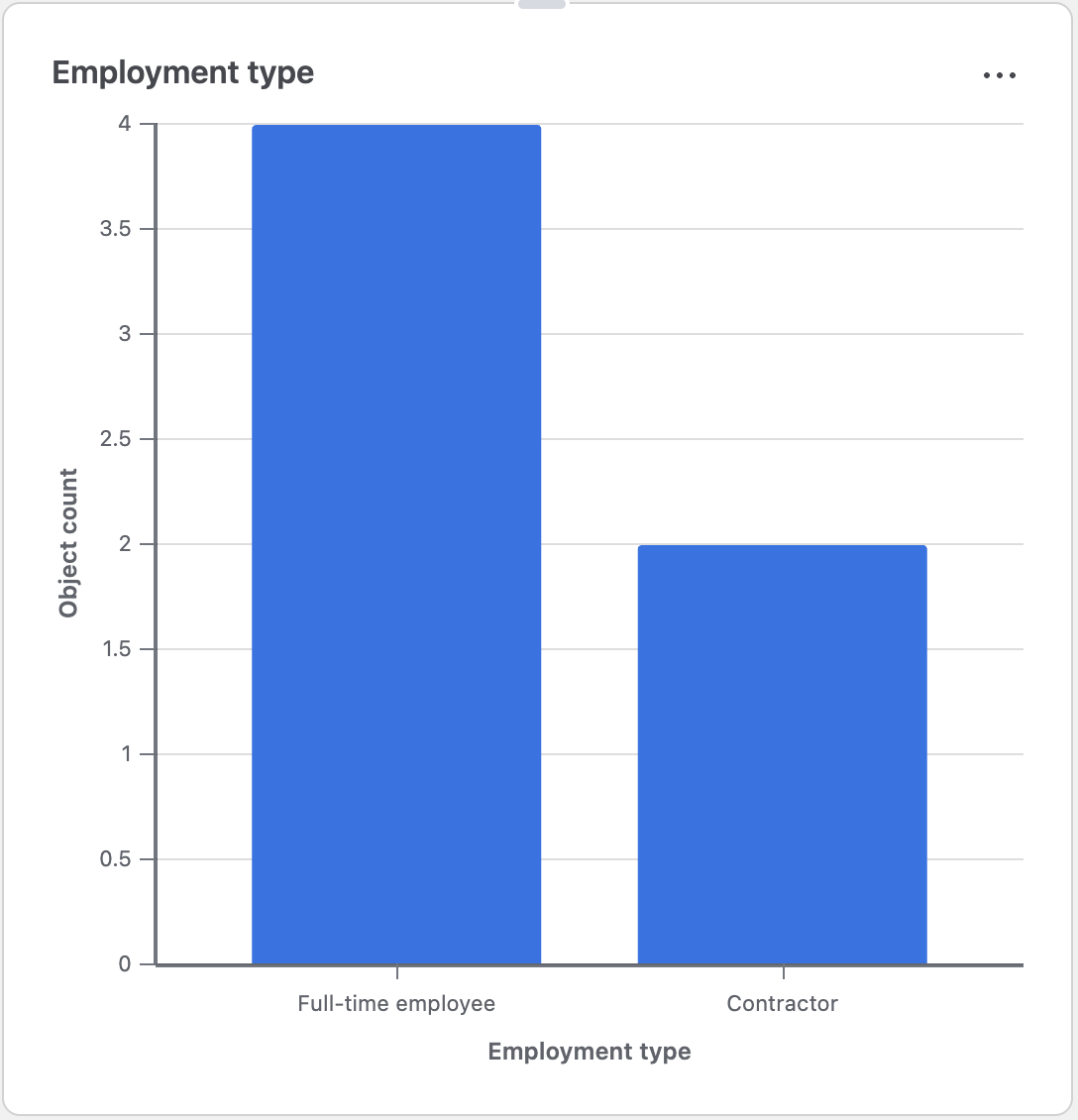

Employee type: shows the total number of employees by employment type
Chart type: vertical bar chart
Metric: count of objects
Schema: Employee management
Object type: employees
What to show: employees
Horizontal (x) axis: Attribute
Attribute: Employee type

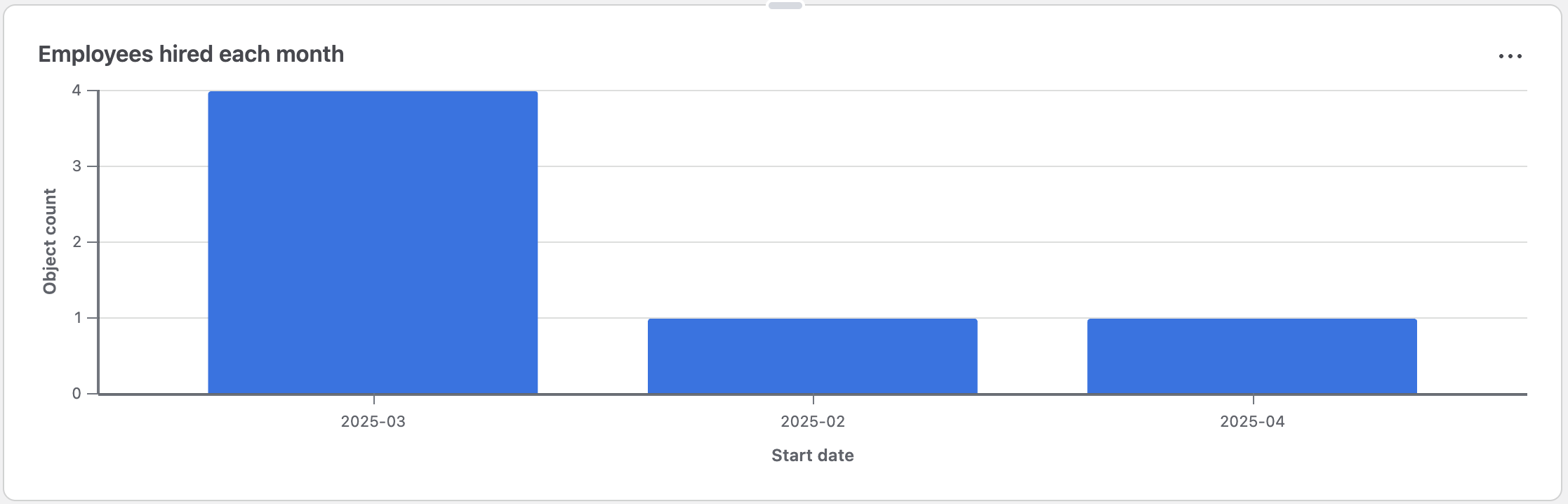

Employees hired each month: shows the total number of employees hired in each month
